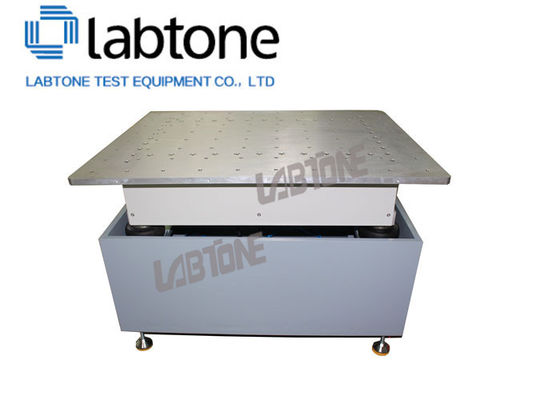

Mechanical Shaker Table for Vibration Testing of Electronic Products with 10-60Hz Frequency Range and 300kg Max Payload

Mechanical vibration test machine applies to electronic products, components, module, mechanical and electrical products, instruments and meters and other transportation vibration simulation test. It meets the standards of GB, UL, IEC vibration test and reliability test.


Specifications

Features

1, Using centrifugal excitation method, low mechanical noise.

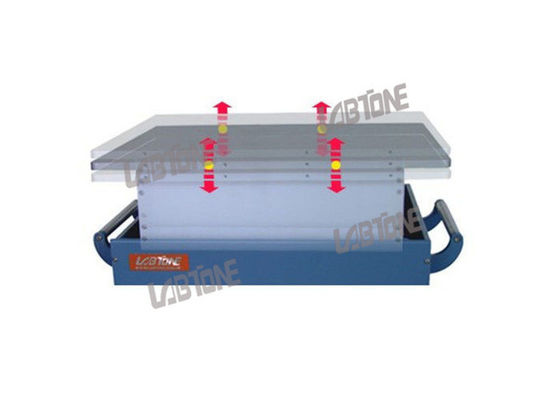

2, Using synchronous reverse movement, excellent table evenness.
3, Stepless amplitude adjustment, meet different product test requirements.
4, Use-friendly operation control interface.
5, Fixed with shock absorption bags without special foundation.

Customer Services

Presales

• Technical consultation: test method, laboratory planning and suggestion.
• Equipment selection: selection scheme, FAQ.
• Product testing scheme.

In-Sales

• Customer communication and progress report.
• Guidance for pre-installation preparation, equipment commissioning and test run.
• Calibration (when Third Party’s verification is required).

After-Sales

• Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

• Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

• Technical support: special paid services are provided according to customer’s needs.

FAQ

Are your company a trading one or a factory ?

Directly factory, more than 15 years focusing on test instruments field, 6 years exporting experience.

How do you attach the hardware you’re testing to your shaker?

By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.

How do you control shakers?

If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.

What are those resonances?Are they bad?

Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.

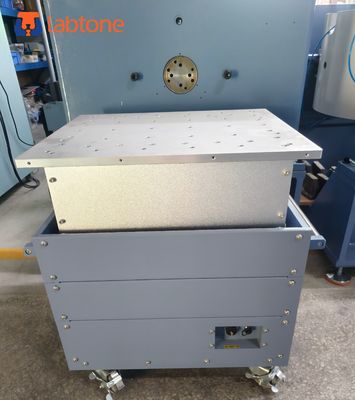

Product Show
