Minitype Vibration Test System
Description
With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.
Product Application
Minitype Vibration Test System
With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Features
- Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
- Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
- Apply to the basic test of vibration engineering of educational equipment.
Equipment Configuration
| Item |
Configuration |
Qty. |
| 1. |
Vibration shaker |
|
| |
ET30 Shaker |
1 set |
| 2. |
Digital switch power amplifier |
|
| |
PA502E Power Amplifier |
1 set |
| 4. |
Attached accessories |
|
| |
connecting line |
1 set |
| |
Operation instructions, inspection report, certificate, maintenance manual, etc. |
1 set |
| |
Special tools |
1 set |
Vibration Test Machine Specification:
|
Vibration Test Machine Specification:
| Electrodynamic shaker |
| Max. sine exciting force |
100Kg.f peak (10N) |
| Frequency range |
5～10000Hz (Larger frequencies are available) |
| Max. displacement |
10mm p-p |
| Max. velocity |
1.5 m/s |
| Max. acceleration |
35G (300 m/s2) |
| Vertical load support |
20 kg |
| Armature diameter |
Ф120 mm |
| Armature weight |
1.7 kg |
| Over all Dimension |
184mm L x 95mm D x 188mm H |
| Shaker weight |
97 Kg |
| Cooling type |
Air Cooling by inner axial fan |
| PA501EF Power Amplifier |
| Output power |
900 VA |
| Amplifier cabinet dimension |
430mm×200mm×500mm |
| Servo protection system |
| Functions: |
FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP |
| Vibration controller |
| Hardware configuration: |
2-channel inputs, 1-channel outputs |
| Control computer |
1 set |
| Function |
Sine Control, Random Control
Language:English,Chinese
|
| Operating system |
Microsoft Windows 7/8/10 |
| Acceleration sensor LAB |
Frequency range:1-12KHz
Sensitivity: 30 ±10 pC/g
Temperature range: -40℃ to 160℃
|
| Head Expander VT40CM |
| Table size |
400x400mm |
| Material |
Magnesium alloy |
| Frequency |
Up to 2000Hz |
| Electrical requirements: |
| Power supply |
AC 220V±10%, 50/60Hz, Single Phase, 900VA |
| Environment Requirements |
Temperature: 0～40ºC
Relative Humidity: 0～80%, non-condensing
|
|
|
Vibration Test Machine Services
Presales:
- Technical consultation: test method, laboratory planning and suggestion.
- Equipment selection: selection scheme, FAQ.
- Product testing scheme.
In-Sales:
- Customer communication and progress report.
- Guidance for pre-installation preparation, equipment commissioning and test run.
- Calibration (when Third Party’s verification is required).
.
After-Sales Service
- Training how to instal the machine, training how to use the machine.
- Engineers available to service machinery overseas.

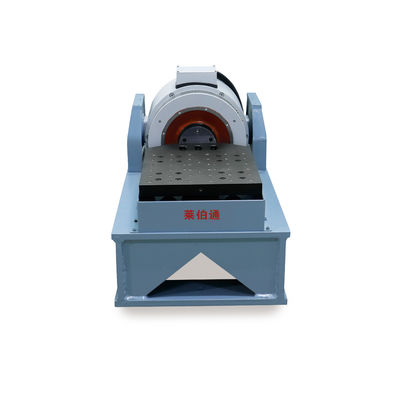

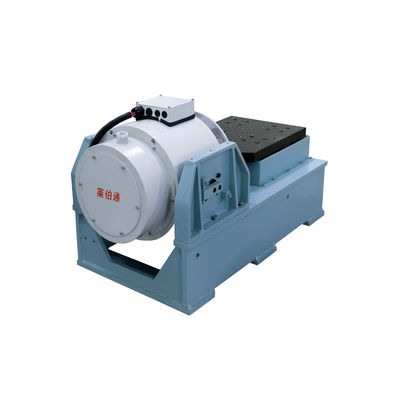

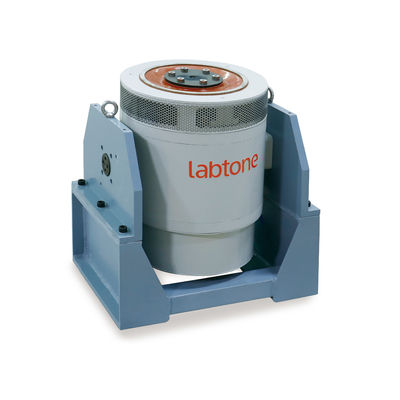

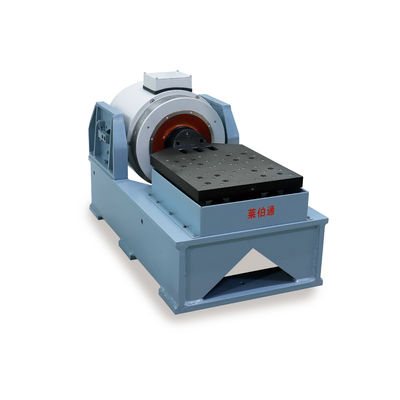

Detailed Pictures
