Product description

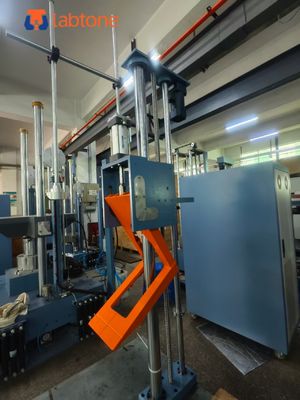

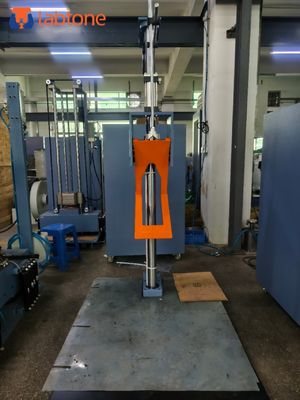

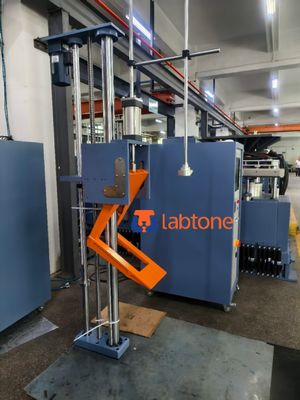

High Accuracy Drop Tester for Packaged Freight Description & Application
Packaging drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.
Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
High Accuracy Drop Tester for Packaged Freight specifications
| Model |
DT150 |
DT200 |
| Drop height range (mm) |
300---1500 |
300----2000 |
| Specimen max.weight (kg) |
85 |
85 |
| Specimen max. size (mm) |
800*800*800 |
800*800*800 |
| Drop mode |
Freedom |
| Machine Dimension (mm) |
1500*1000*2150 |
1700*1200*2750 |
| Machine weight (kg) |
480 |
550 |
| Power supply |
AC220V 50Hz compressed air 0.5~0.7Mpa |
| Standards |
ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 |
High Accuracy Drop Tester for Packaged Freight Features
1 Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.
2 With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.
3 Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4 Pneumatic automatic chain, preventing swing arm unusual break away.
5 Extensible support bracket and baseboard.
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers
.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
